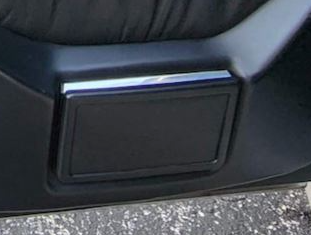

Need a rear ashtray. Should look like this.
-
Hi Guest !
Welcome to the 500Eboard forum.
Since its founding in late 2008, 500Eboard has become the leading resource on the Internet for all things related to the Mercedes-Benz 500E and E500. In recent years, we have also expanded to include the 400E and E420 models, which are directly related to the 500E/E500.
We invite you to browse and take advantage of the information and resources here on the site. If you find helpful information, please register for full membership, and you'll find even more resources available. Feel free to ask questions, and make liberal use of the "Search" function to find answers.
We hope you will become an active contributor to the community!
Sincerely,
500Eboard Management -
DISCLAIMER
500Eboard, including its owner, administrators and moderators do not endorse, approve or support any claims provided by sellers as to vehicle condition, history, title status or mechanical operation.
Forum members/sellers are fully responsible for the accurate representation of all vehicles and/or parts they list and describe for sale on this forum. 500Eboard is not legally liable or responsible for sellers who misrepresent their vehicles per US Federal, State and local laws and regulations pertaining to proper and accurate vehicle sales.
Thank you
WANTED WTB Rear Ashtray
- Thread starter JeffSpicoli
- Start date
-
- Tags
- ashtray
Thank you!

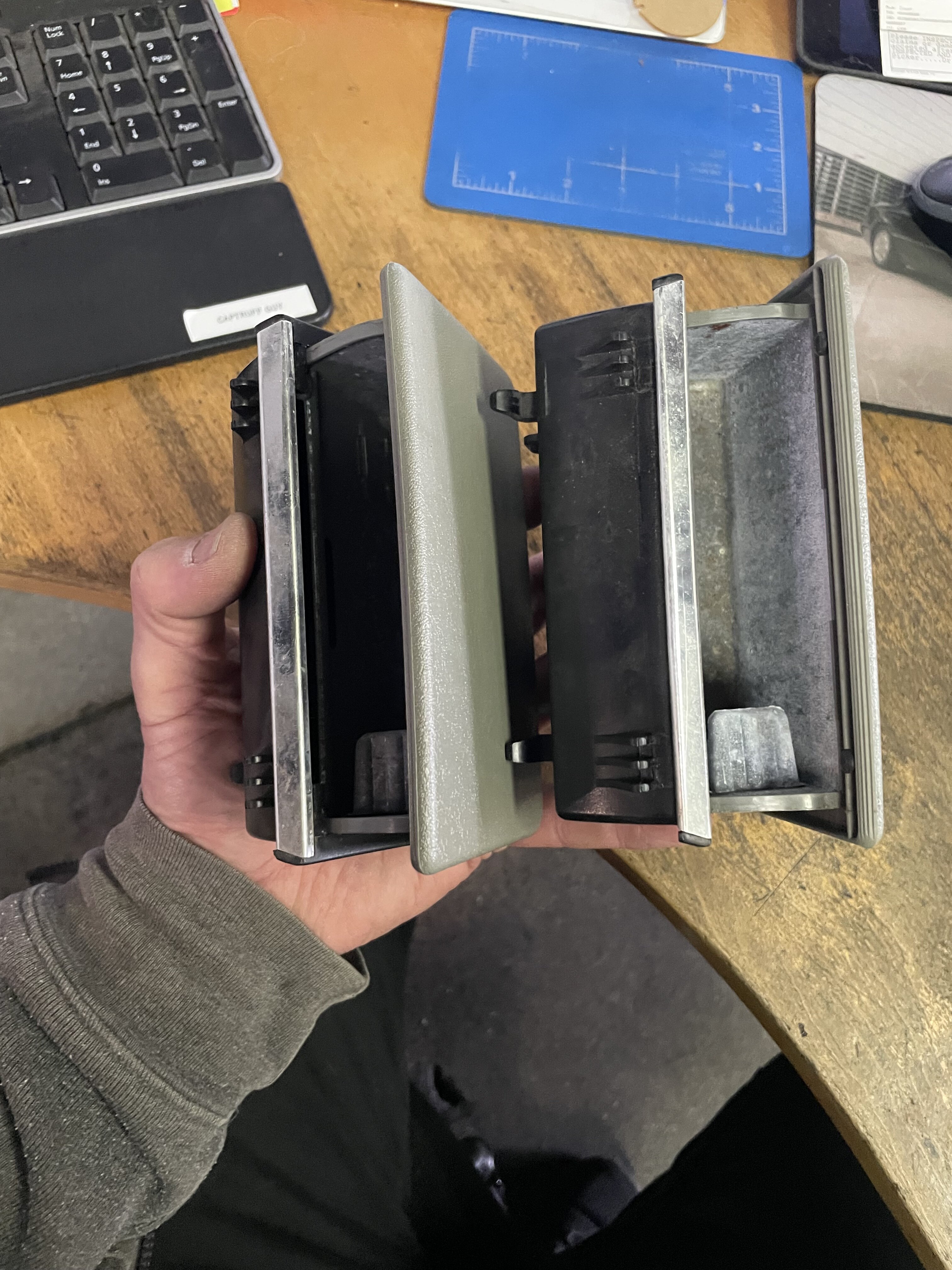

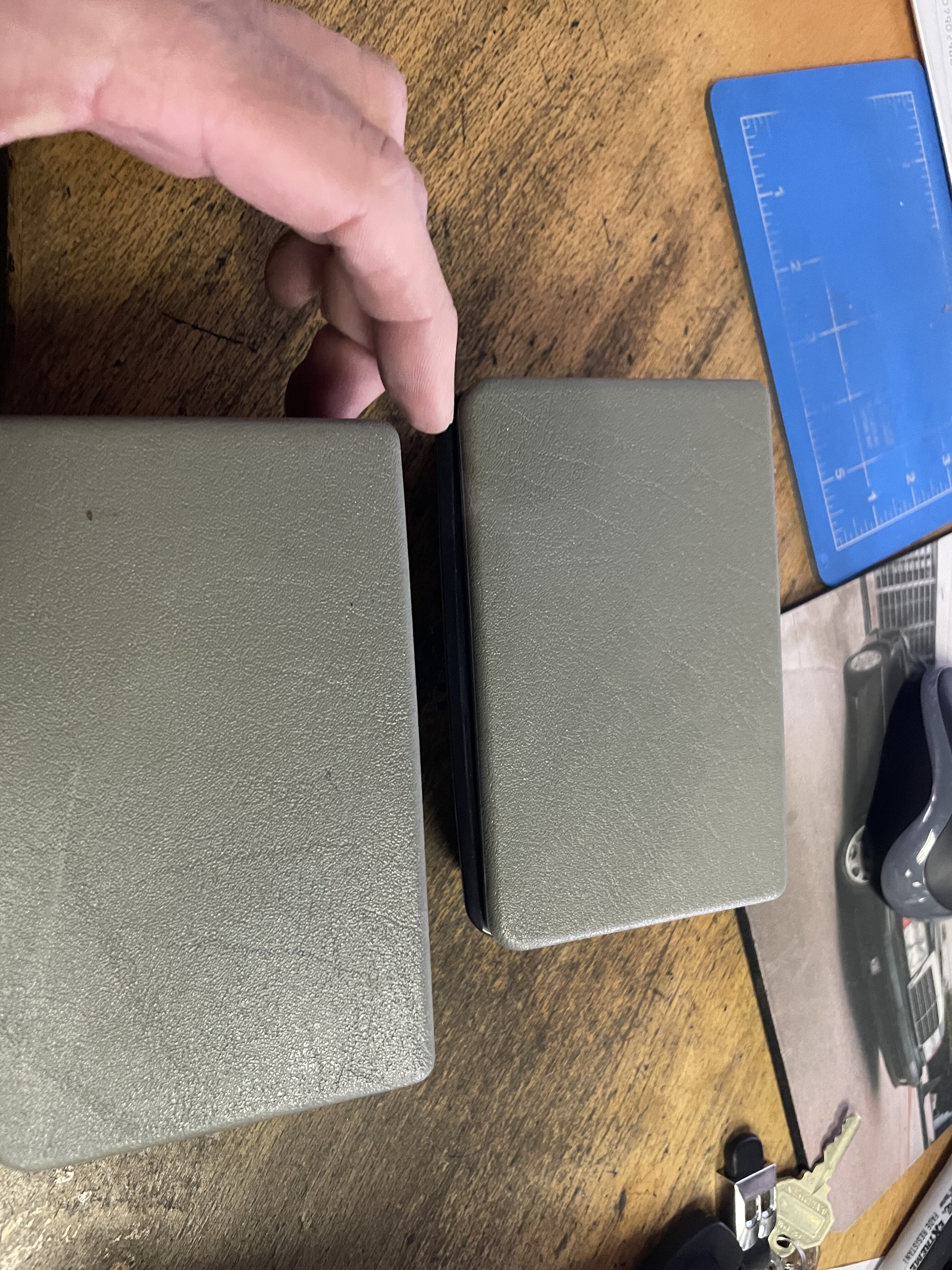

I'm pretty sure those are for the center. The door ones have a bit more decoration around the border. Unfortunately I have one middle one and one door one. Need another door. I'm happy to paint parts if you come across the other style.
Add it to the list of difficult things to find for these old gems...
gsxr:
You are correct. I forgot about that. The center rear is all plastic, but when I parted a 500E I took one of the rear side ashtrays for the center.
Jeff
I believe W210 cars use the bordered ashtrays. Take a look at the photos: No Reserve: 2000 Mercedes-Benz E320 4MATIC Wagon
Veeeery interesting....can you show me WHERE is the difference?

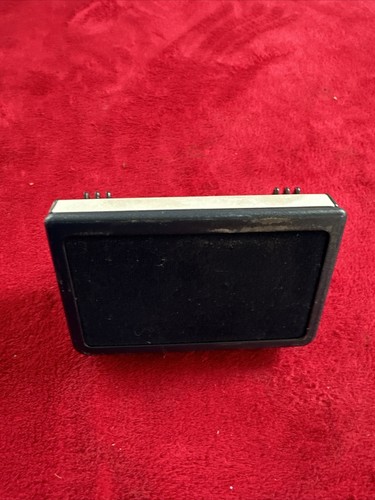

Mercedes W124 Aschenbecher hinten Tür chrom Blau Sofort Versand | eBay.de
Entdecke Mercedes W124 Aschenbecher hinten Tür chrom Blau Sofort Versand in groÃer Auswahl â Vergleichen Angebote und Preise â Online kaufen bei eBay.de â Kostenlose Lieferung für viele Artikel!
www.ebay.de

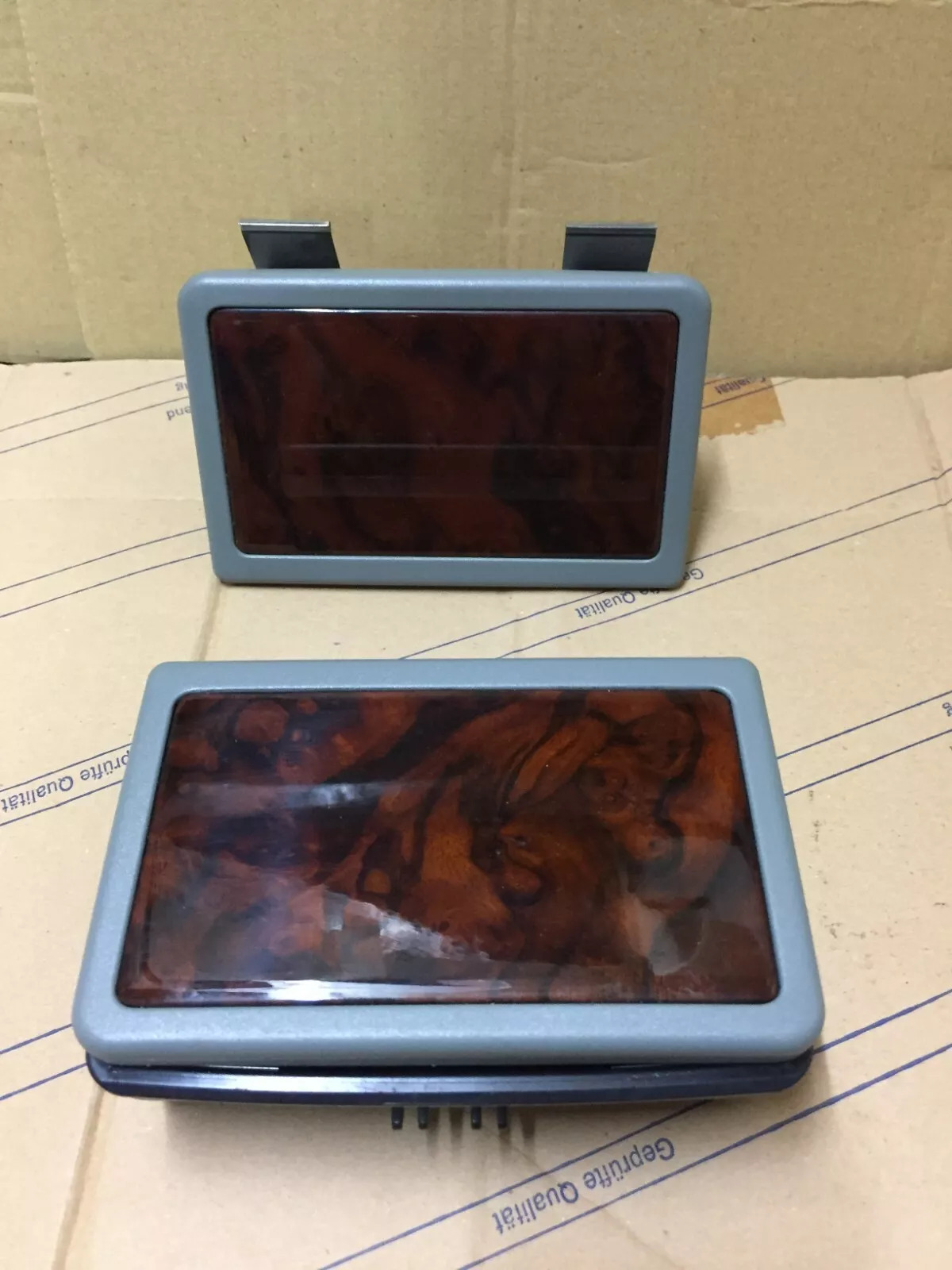

The center section/insert on pedestrian 124 ashtrays are fabric, while ours are with leather. You get them with burlewood insert as well.Veeeery interesting....can you show me WHERE is the difference?
Mercedes W124 Aschenbecher hinten Tür chrom Blau Sofort Versand | eBay.de
Entdecke Mercedes W124 Aschenbecher hinten Tür chrom Blau Sofort Versand in groÃer Auswahl â Vergleichen Angebote und Preise â Online kaufen bei eBay.de â Kostenlose Lieferung für viele Artikel!www.ebay.de
USA models must be different than ROW/Europe. All North American spec 124's have plain plastic rear ashtray face plates, except the 036. Never seen the fabric inserts before, because USA never got fabric/velours interiors.

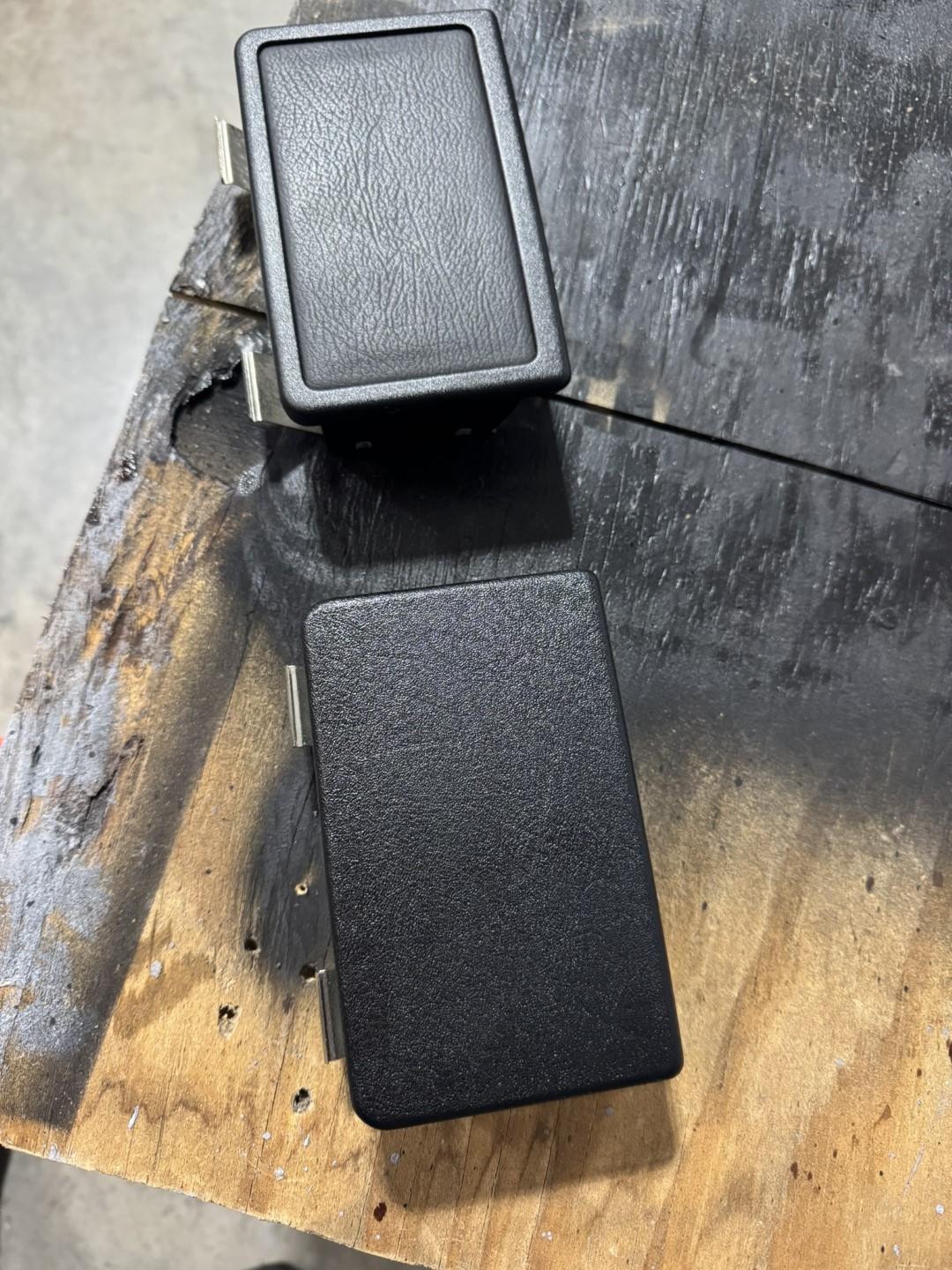

What Jeff shows in the photo below is how all USA-spec 124's look, except the 036.
What Jeff shows in the photo below is how all USA-spec 124's look, except the 036.
I honestly don´t think Mercedes produced rear ashtrey only for 036.... We leave wooden inlay out, it´s amg option i guess.
There are 2 different types of ashtray, yes, but it depends on year of production. Without and with chrom stripe. I´d like to get part number for 124036 rear ashtray and compare it to pedestrian one ..... i bet we´ll see no difference, but i also learn new stuff with pleasure
There are 2 different types of ashtray, yes, but it depends on year of production. Without and with chrom stripe. I´d like to get part number for 124036 rear ashtray and compare it to pedestrian one ..... i bet we´ll see no difference, but i also learn new stuff with pleasure

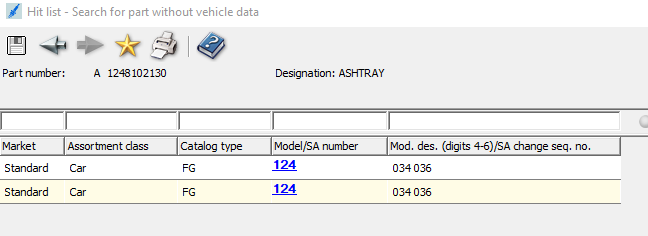

EPC says A1248102130 is for Standard/ROW 034/036 only, with Tex or Leather.
A1248101730 is used with velours/fabric on many, many 124 chassis & regions.
A1248100030 is the generic plastic-face ashtray used on all USA 124's (except 036).

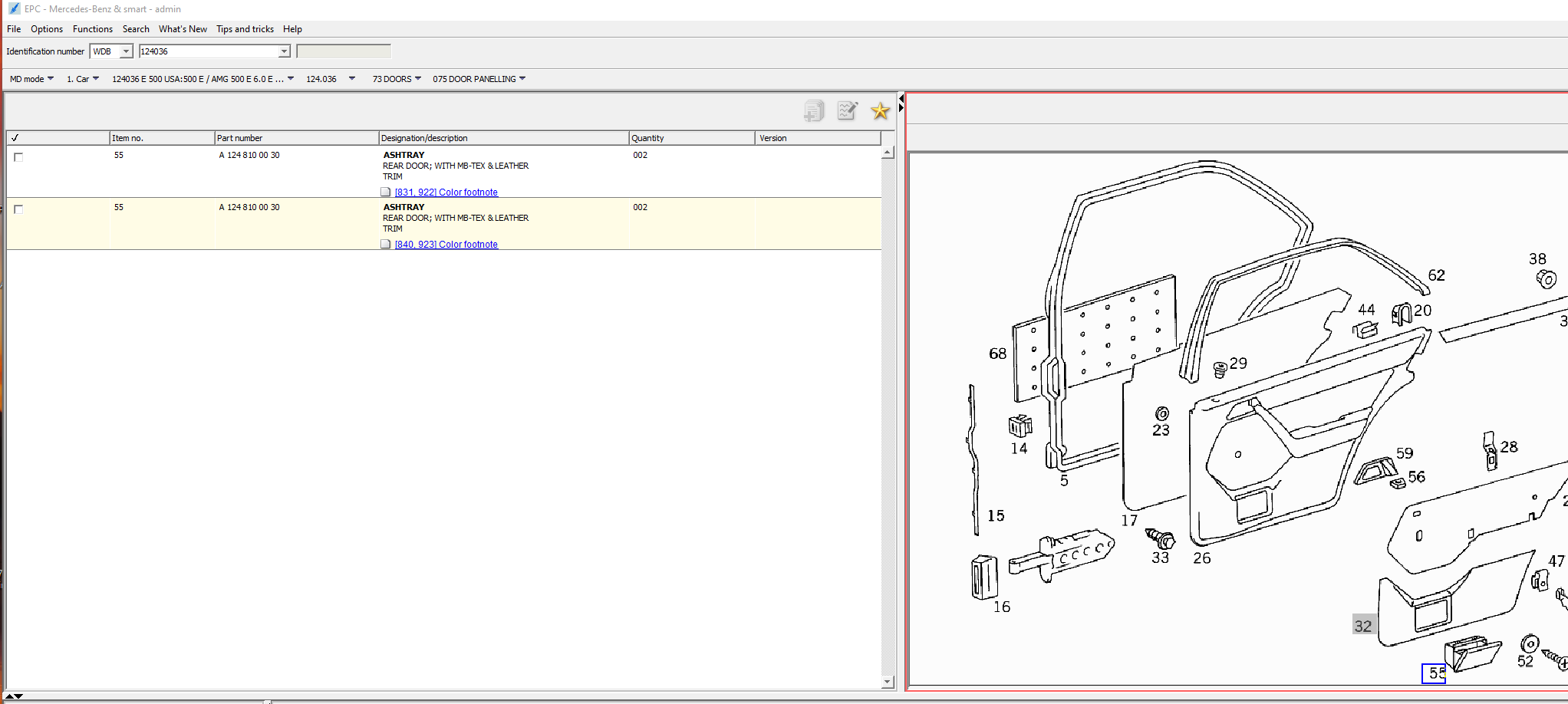

The EPC incorrectly shows A1248100030 for the 036 in North America. I've added this to my list of EPC errors. Screenshot below:
A1248101730 is used with velours/fabric on many, many 124 chassis & regions.
A1248100030 is the generic plastic-face ashtray used on all USA 124's (except 036).
The EPC incorrectly shows A1248100030 for the 036 in North America. I've added this to my list of EPC errors. Screenshot below:
Last edited:
Exactly. I have only one at the moment and it's...it's just empty. It's like not driving at all...I could never live without leather inserts on the ashtray covers, really nice to drive with - adds at least 5 hp!
Thank you for the part numbers!
