System Diagram

�ůQWindshield/Headlamp Cleaning System:

Wiring Diagram

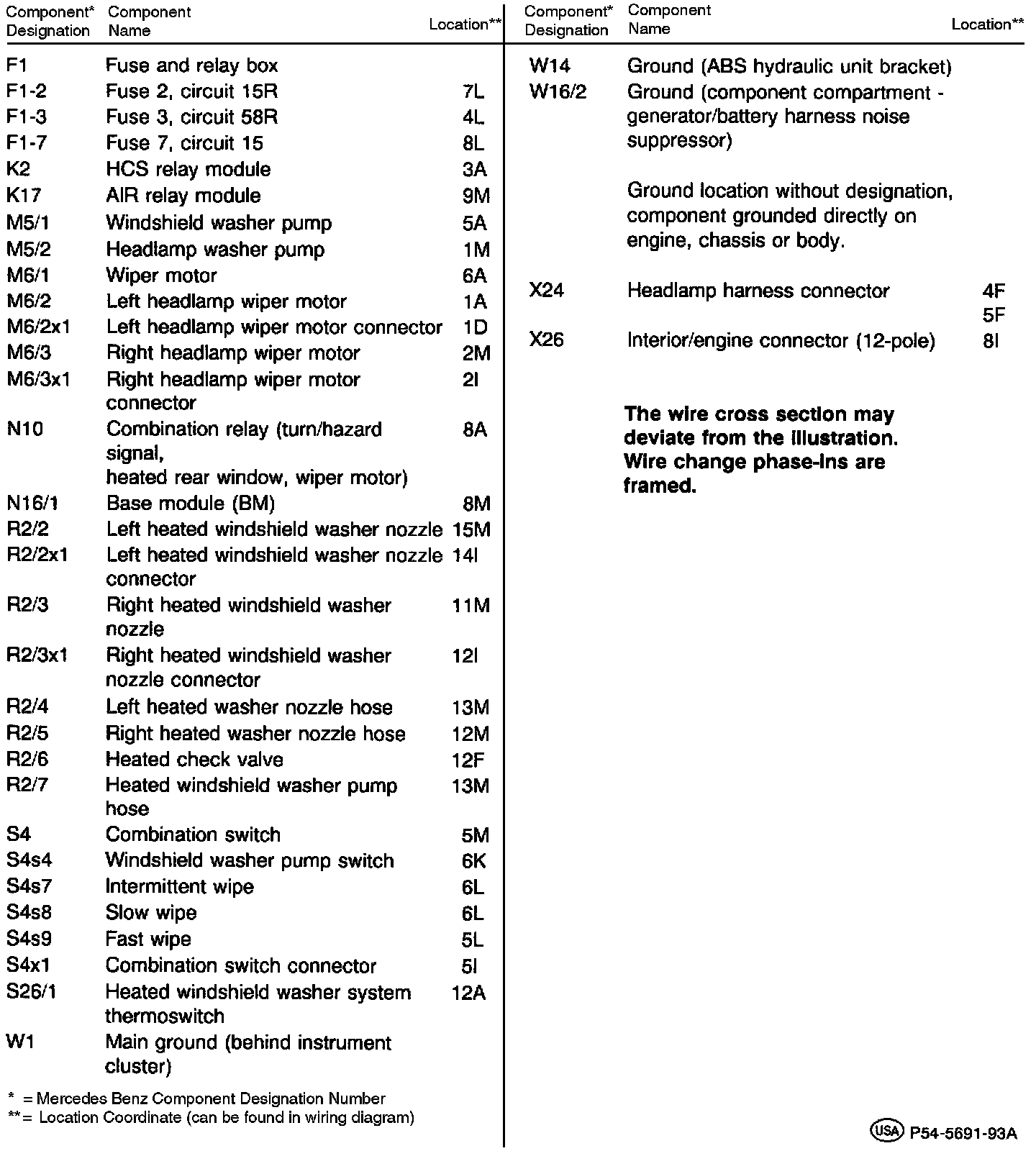

Windshield/Headlamp Cleaning System - Component Index:

Component Index
