Vacuum and Vapor Hose Diagrams

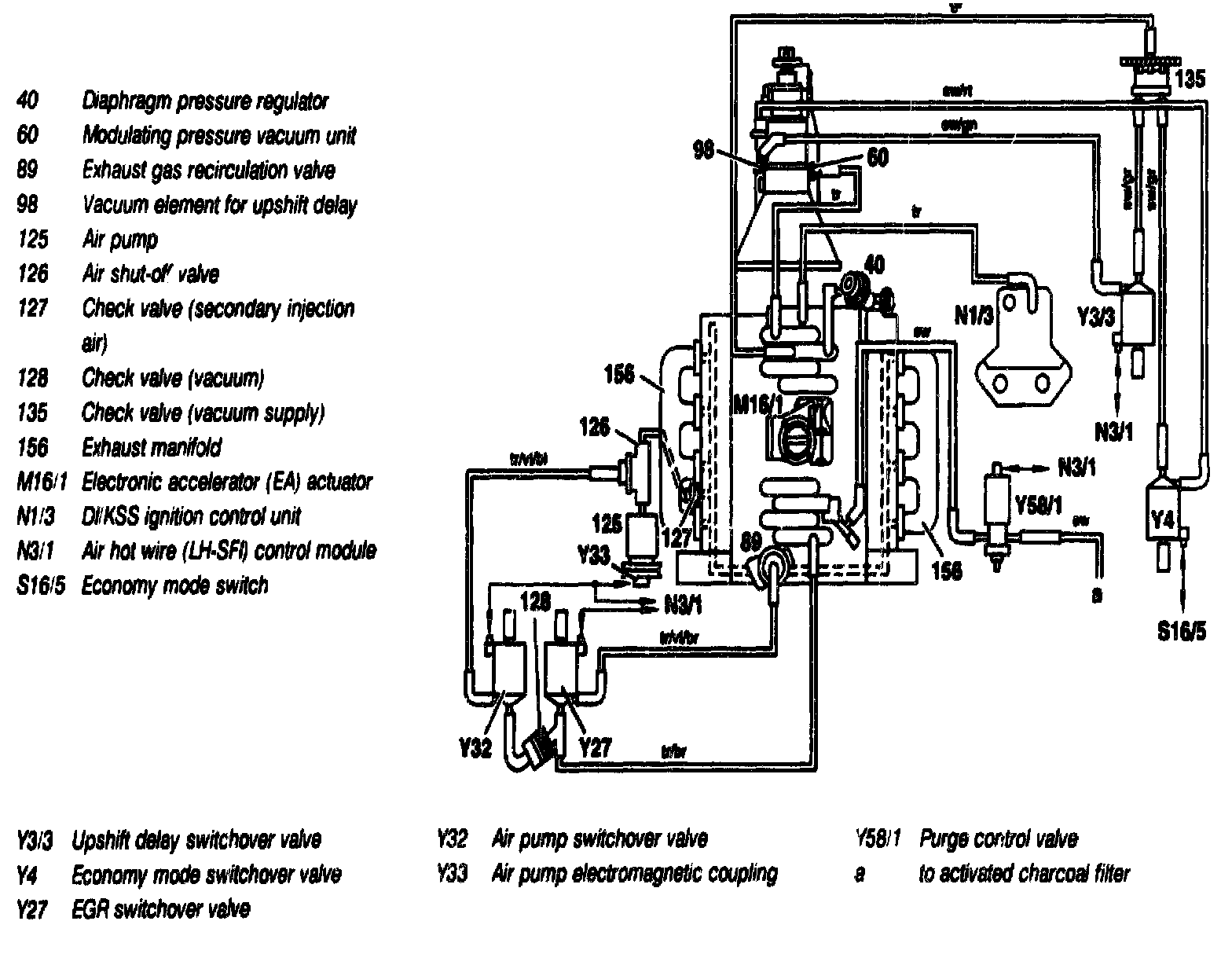

Function diagram of vacuum supply model 124, engine 119.974/975






Function diagram of vacuum supply model 129, engine 119.972






Function diagram of vacuum supply model 140, engine 119.970/971
1st version up to 05/91






Function diagram of vacuum supply model 140, engine 119.970/971
2nd version as of 06/91
